Selecting Blocks

There are several functions in ruleset that are responsible for selecting certain blocks by condition. Blocks selectors are limited by blocks scope.

Blocks Selection Functions

Let's take this scene, for example, and apply various block selector rules. Selected blocks will be colored red.

We will be using next style script.

@tool
extends RoommateStyle


func _build_rulesets() -> void:
    var ruleset := create_ruleset()
    # block selection code goes here
    ruleset.select_all_parts().surfaces.color.accumulate(Color.RED, 0.8)

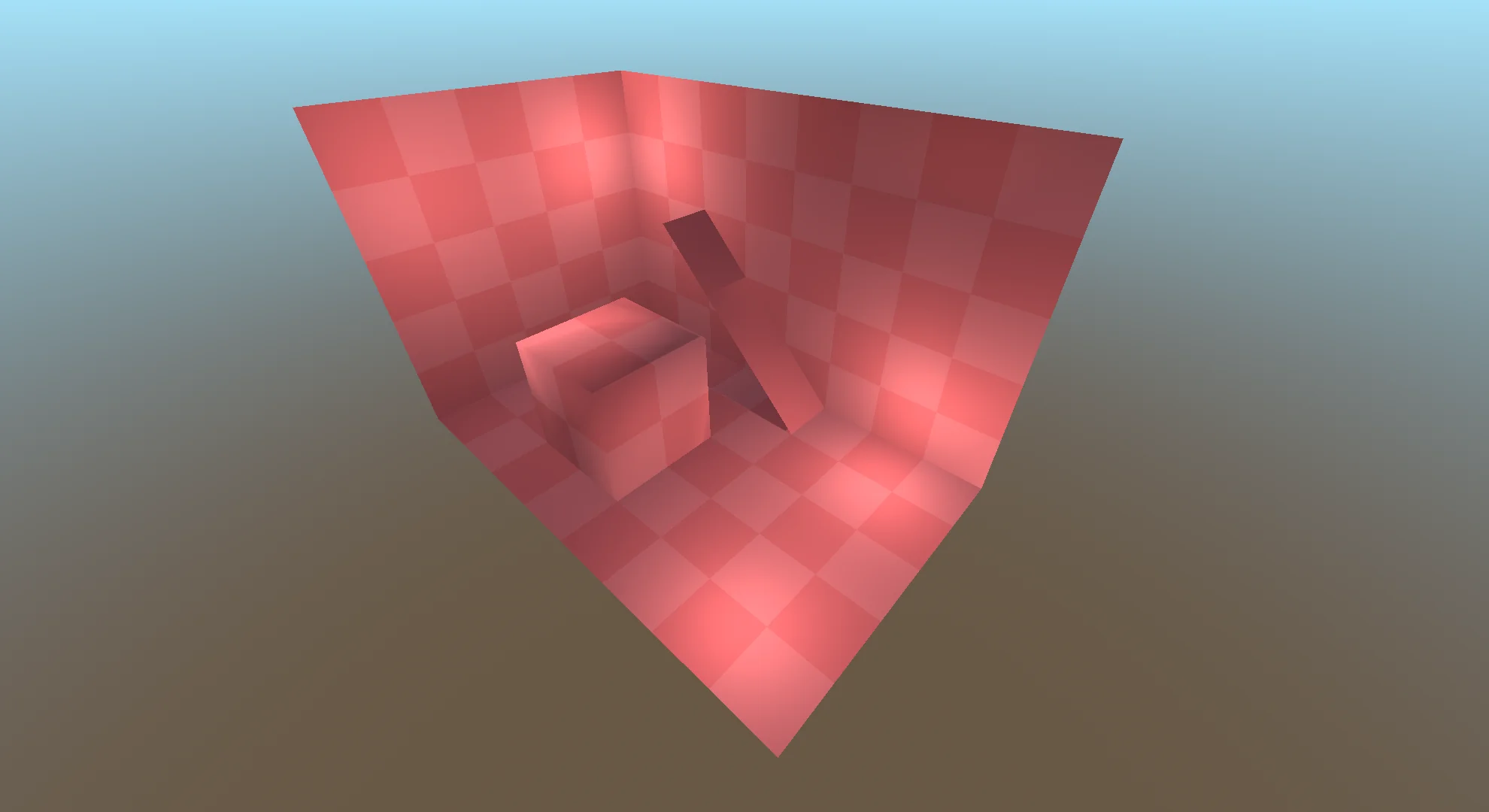

select_all_blocks

Simply selects all blocks in the scope.

ruleset.select_all_blocks()

select_blocks_by_type

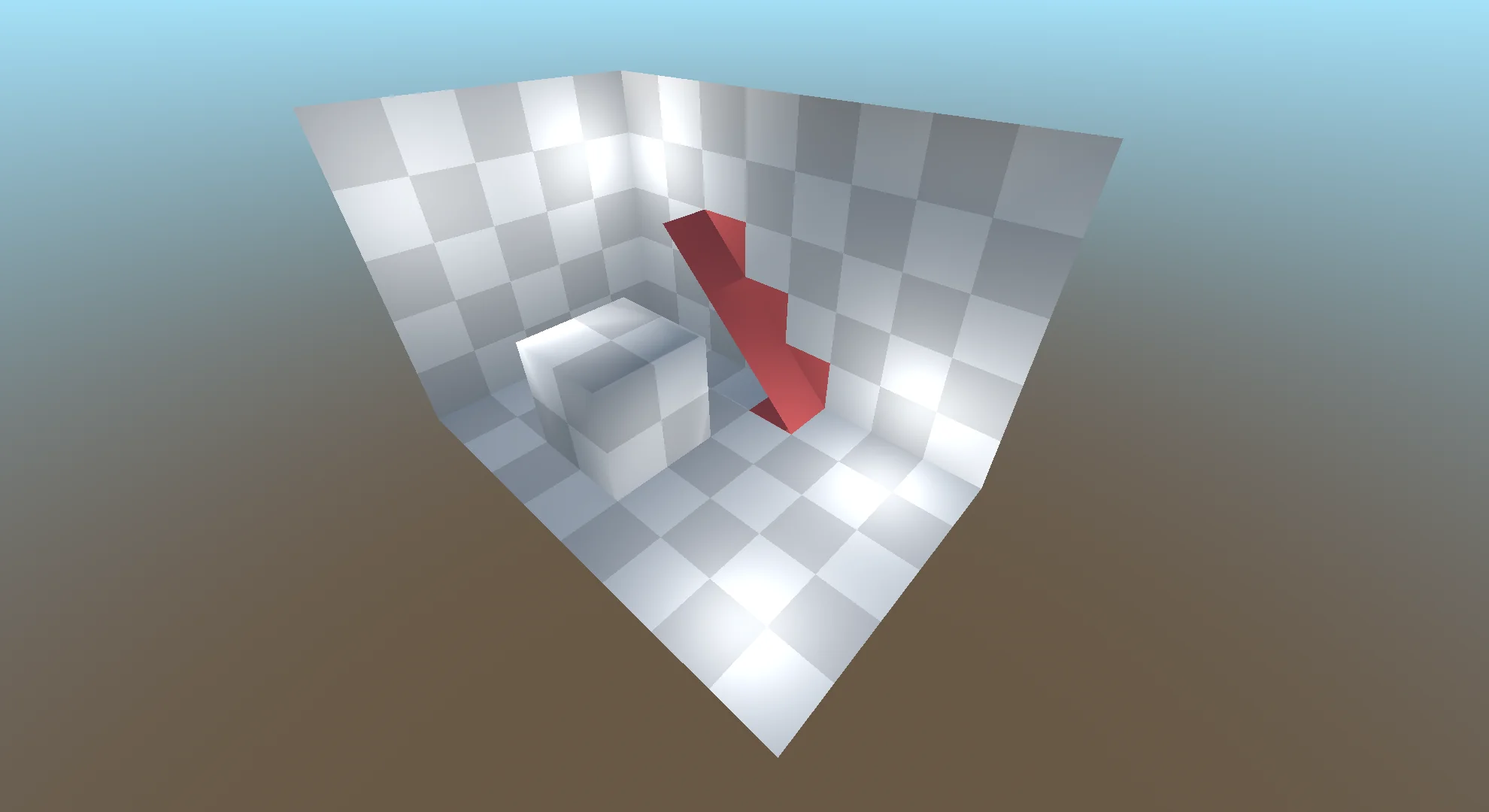

Select all blocks of certain type. For example, we will select all oblique blocks.

ruleset.select_blocks_by_type(RoommateBlock.OBLIQUE_TYPE)

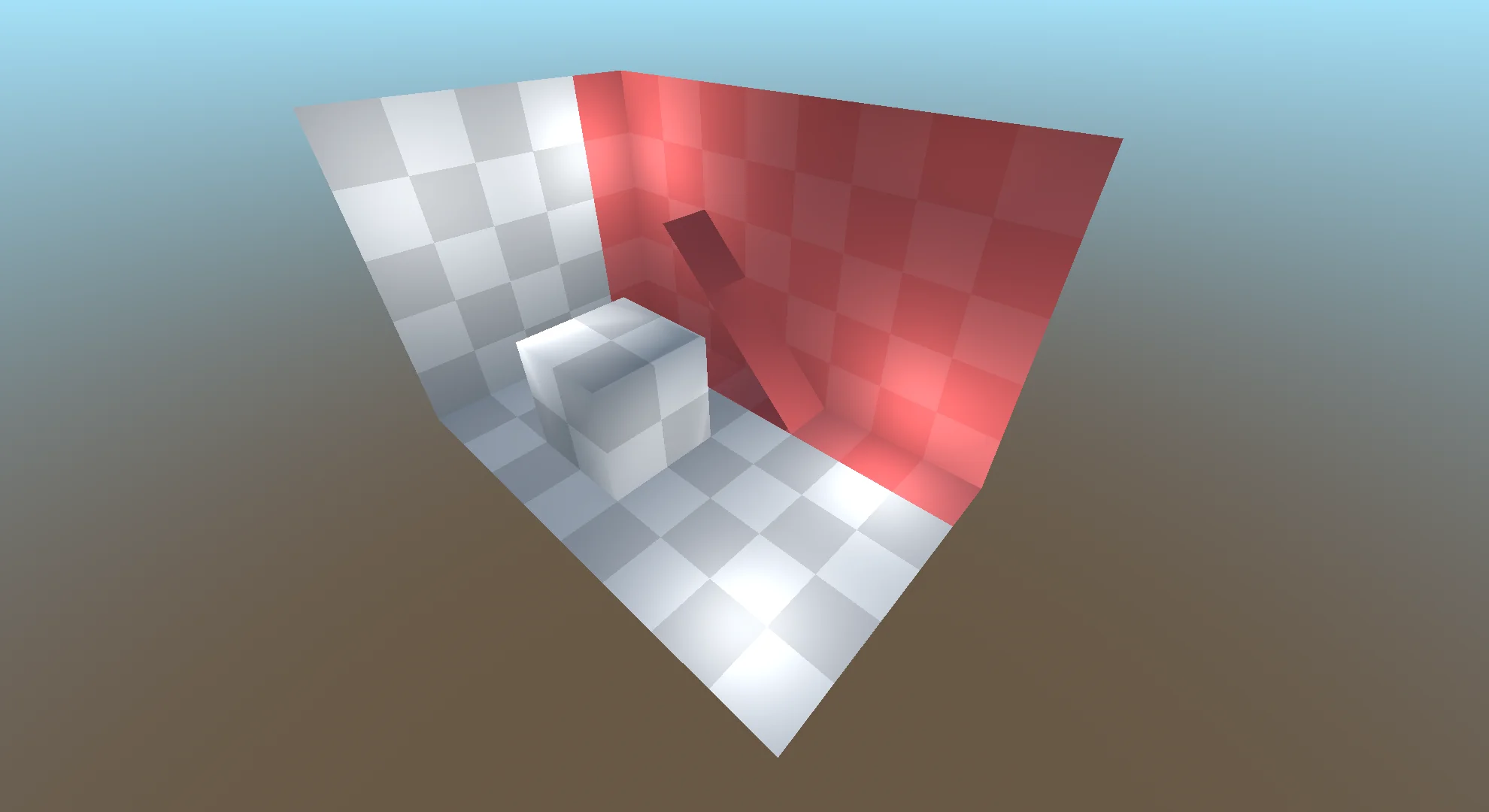

select_blocks_by_extreme

Select blocks by extreme positions in current scope.

ruleset.select_blocks_by_extreme(Vector3i.FORWARD)

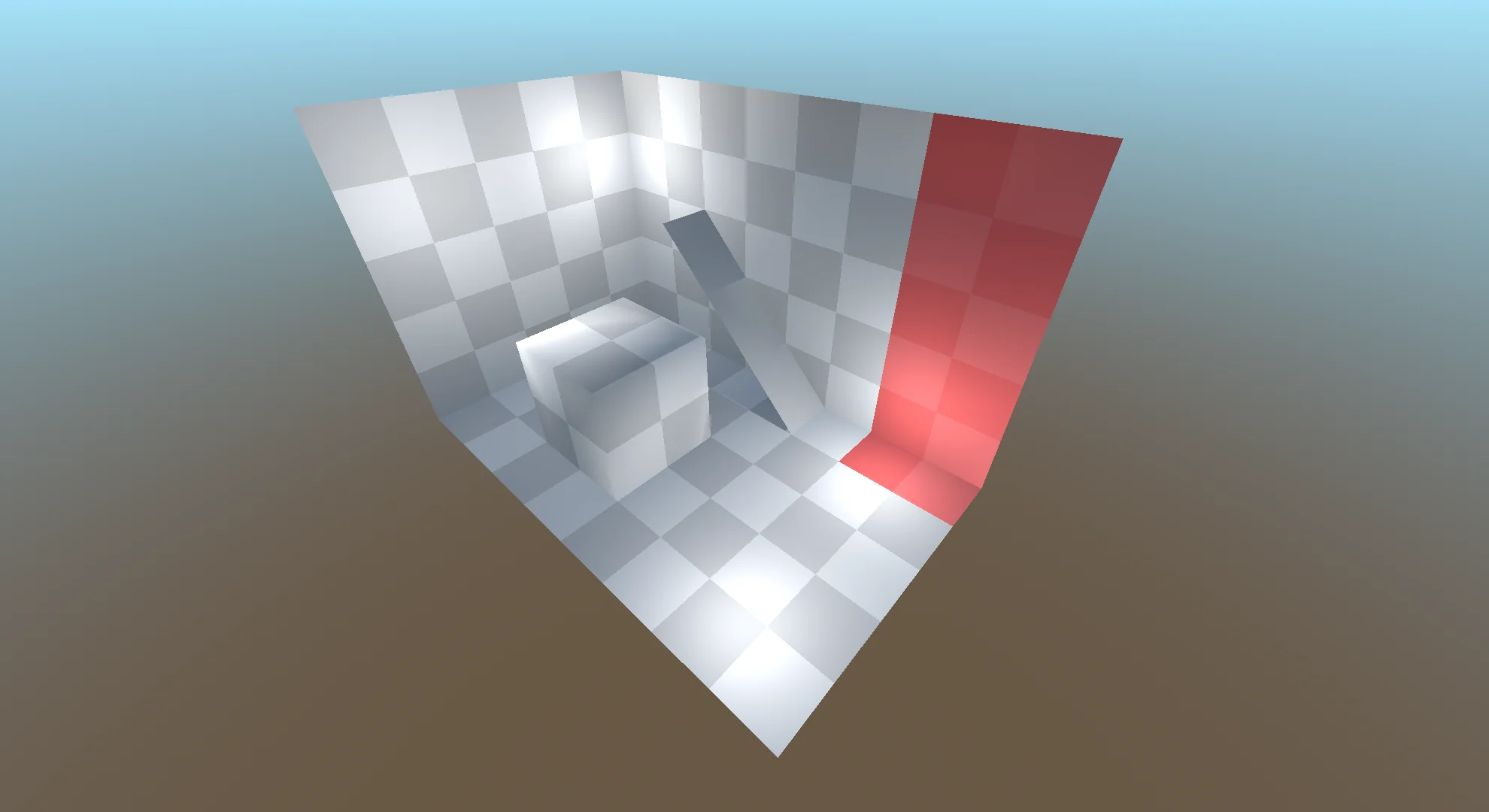

By passing 0 as a value for certain axis, it will be ignored, i.e. selection will be extruded along that axis. Number means how much rows will be selected from min/max positions.

ruleset.select_blocks_by_extreme(Vector3i(2, 0, -1))

select_edge_blocks

Block is selected if it's near edge. Array of RoommateSegment must be passed as a parameter.

var segment_left := RoommateSegment.new(Vector3i.LEFT, 0)
ruleset.select_edge_blocks([segment_left])

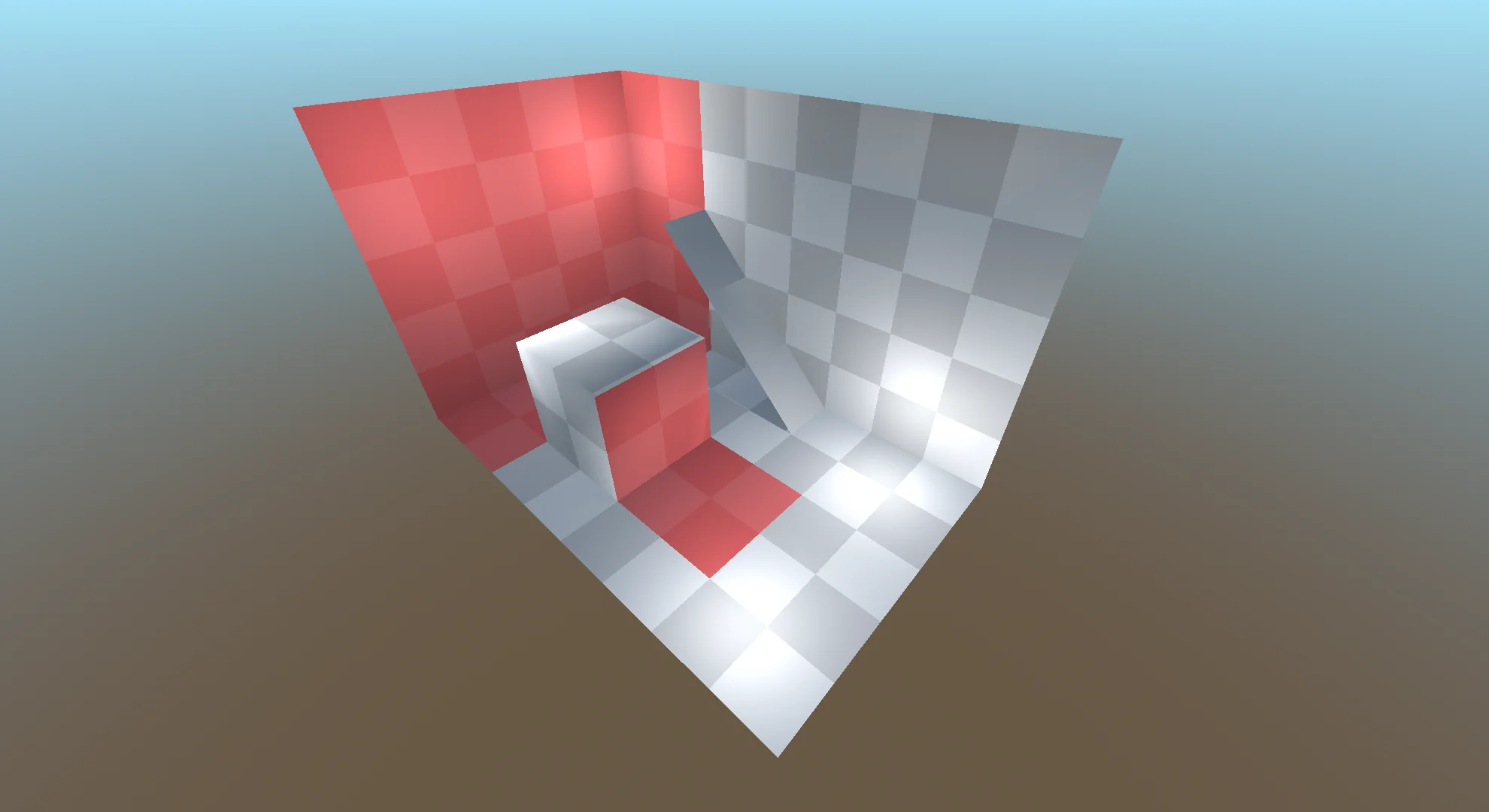

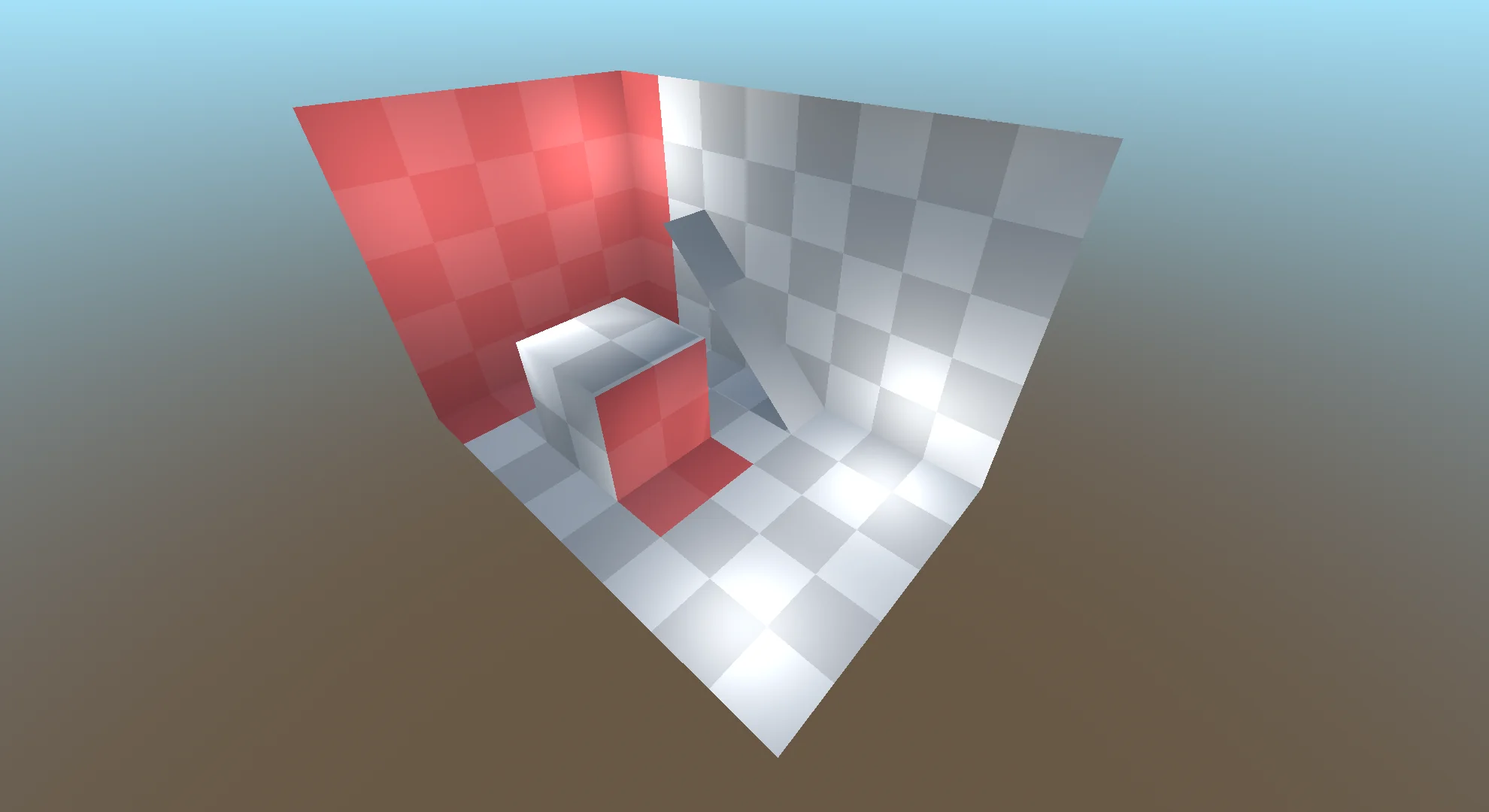

Size of selection can be increased by changing max_steps parameter,

var segment_left := RoommateSegment.new(Vector3i.LEFT, 1)
ruleset.select_edge_blocks([segment_left])

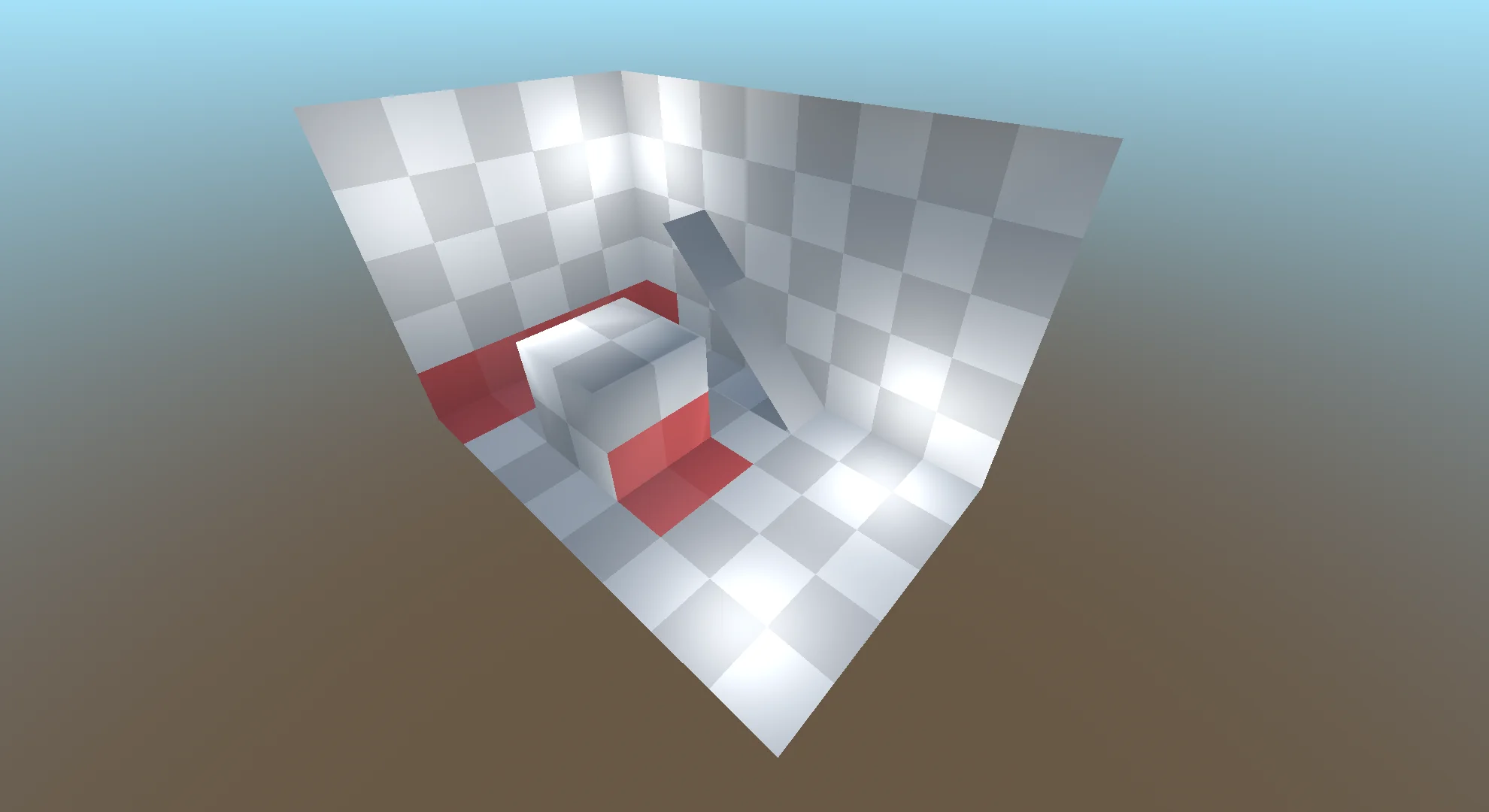

By passing multiple segments, block selection can be limited .

var segment_left := RoommateSegment.new(Vector3i.LEFT, 0)
var segment_down := RoommateSegment.new(Vector3i.DOWN, 0)
ruleset.select_edge_blocks([segment_left, segment_down])

There are select_edge_blocks_axis function. It produces same result as above example

ruleset.select_edge_blocks_axis(Vector3i(-1, -1, 0))

select_interval_blocks

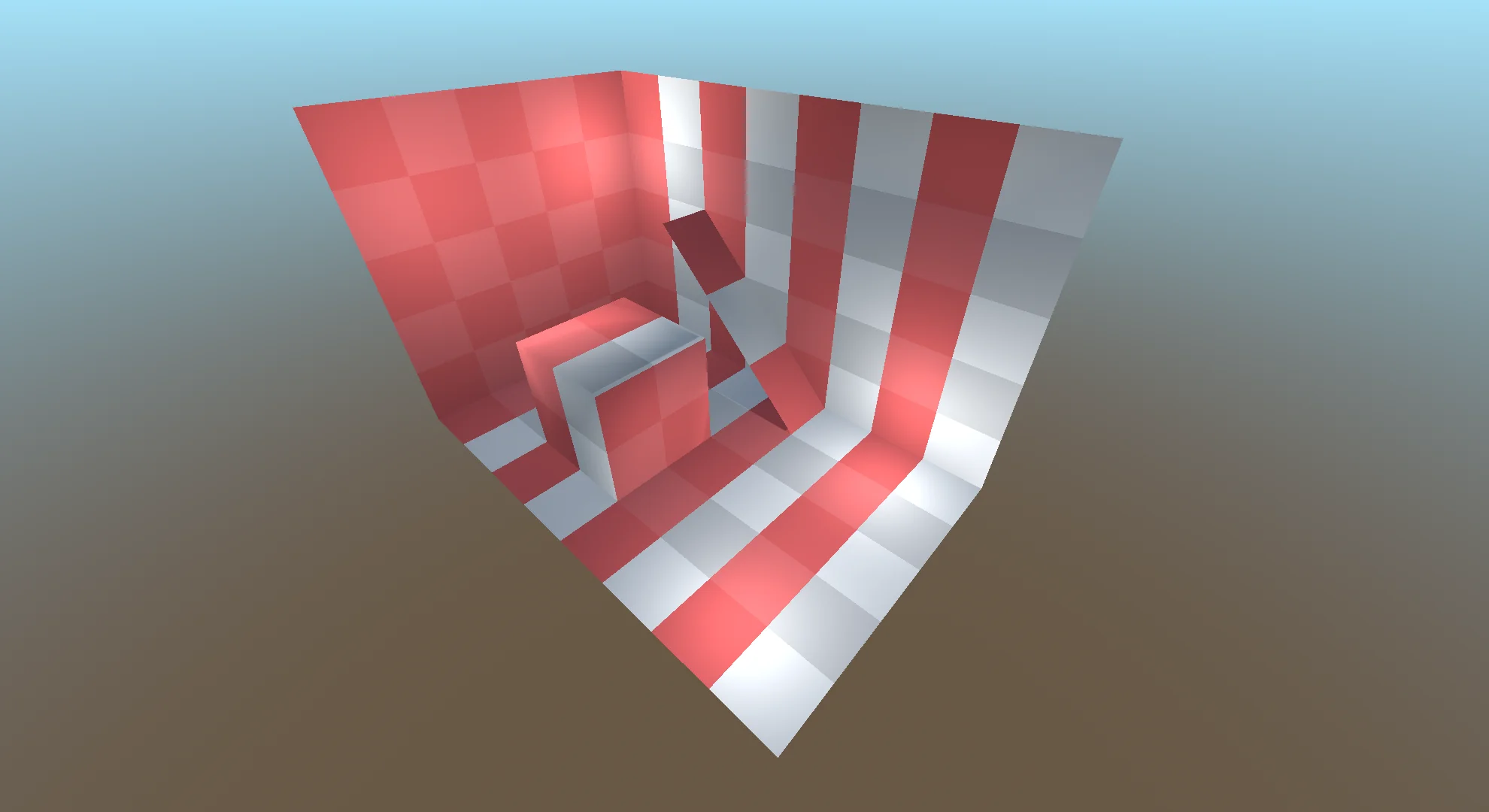

Selects blocks by interval along several axes. In this example blocks are selected along X axis with step 2.

ruleset.select_interval_blocks(Vector3i(2, 0, 0))

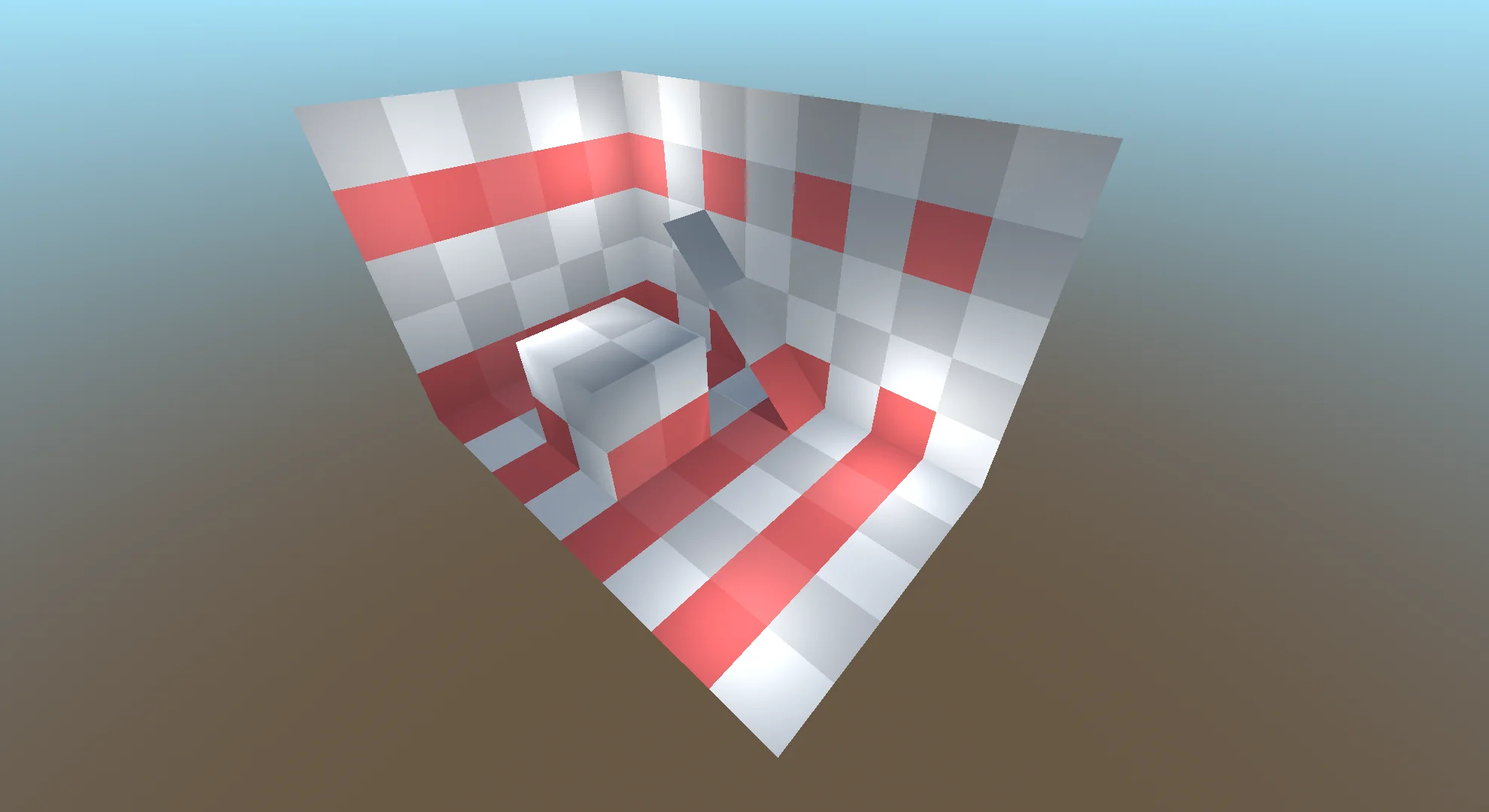

Block selection can be limited by using multiple axes.

ruleset.select_interval_blocks(Vector3i(2, 3, 0))

select_inner_blocks

The most distant blocks from edges are selected along the axes.

var segment_forward := RoommateSegment.new(Vector3.FORWARD, 0)
ruleset.select_inner_blocks([segment_forward])

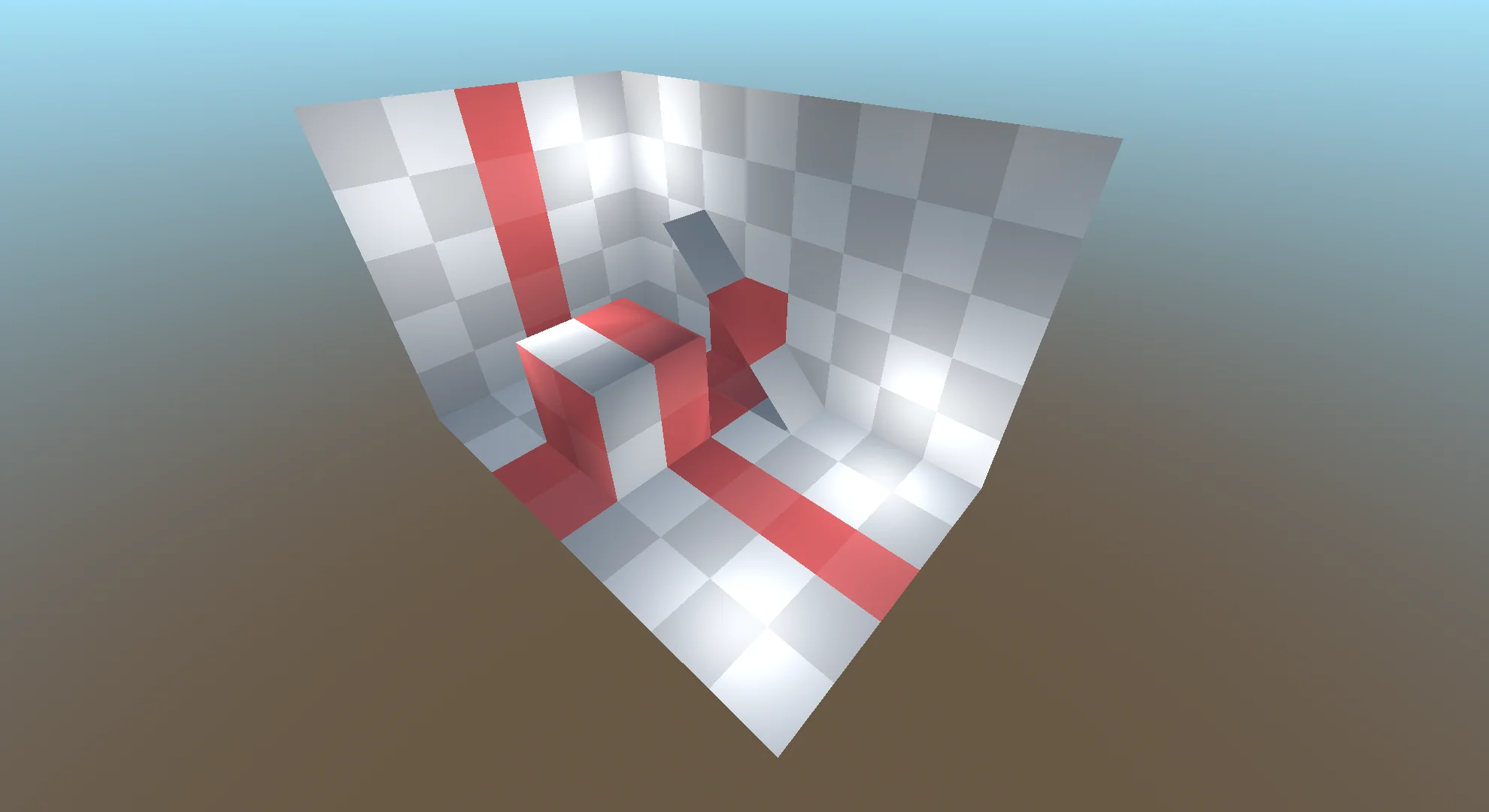

Set max_step parameter to positive number in RoommateSegment to increase distance tolerance.

var segment_forward := RoommateSegment.new(Vector3.FORWARD, 1)
ruleset.select_inner_blocks([segment_forward])

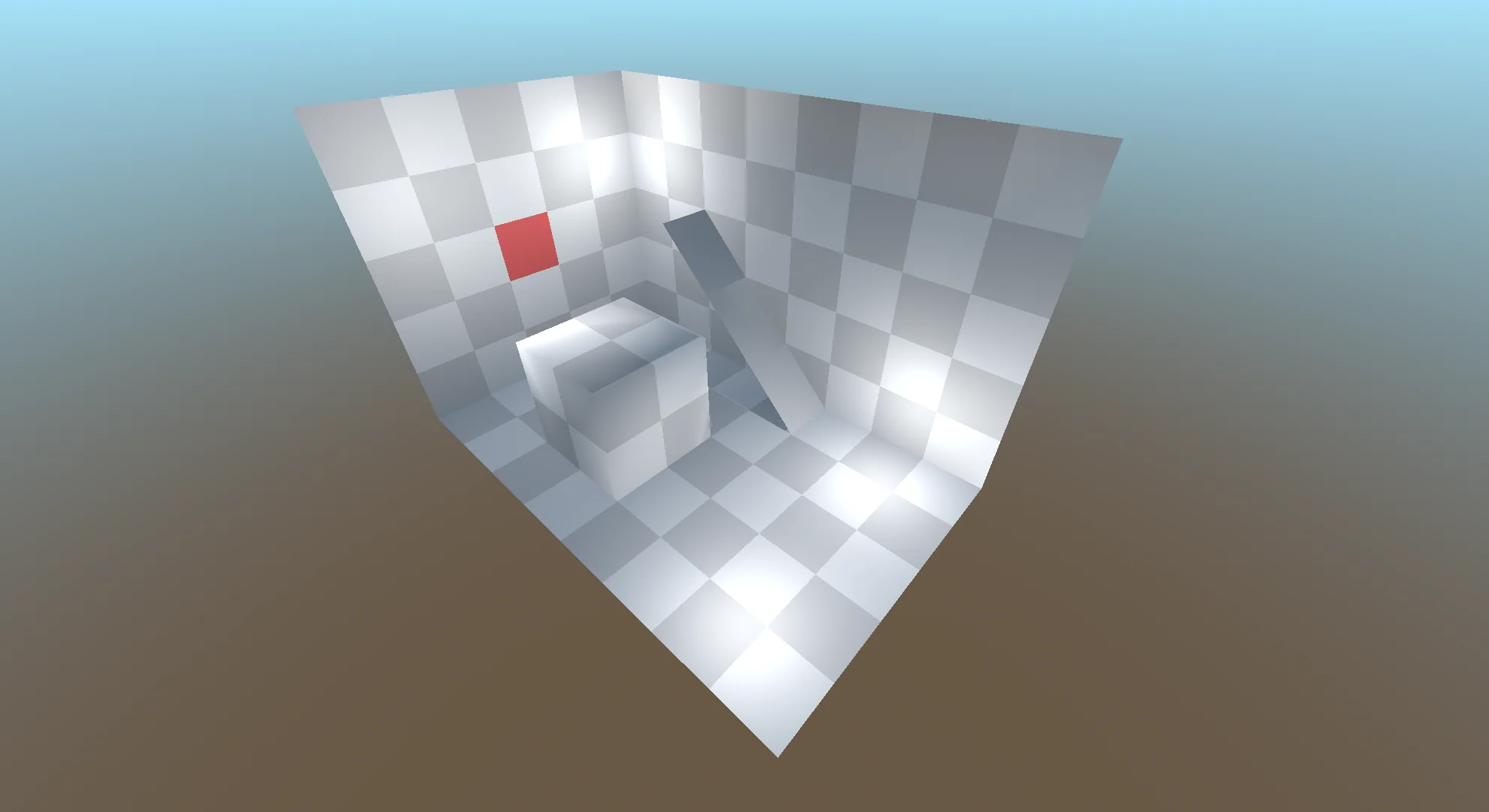

Selection of blocks can be limited, by using multiple segments with different axes.

var segment_forward := RoommateSegment.new(Vector3.FORWARD, 0)
var segment_up := RoommateSegment.new(Vector3.UP, 0)
ruleset.select_inner_blocks([segment_forward, segment_up])

For convinience, these functions are exists. The result are the same as above

ruleset.select_inner_blocks_uniform([Vector3i.FORWARD, Vector3i.UP], 0)

ruleset.select_inner_blocks_axis(Vector3i(0, 1, -1))

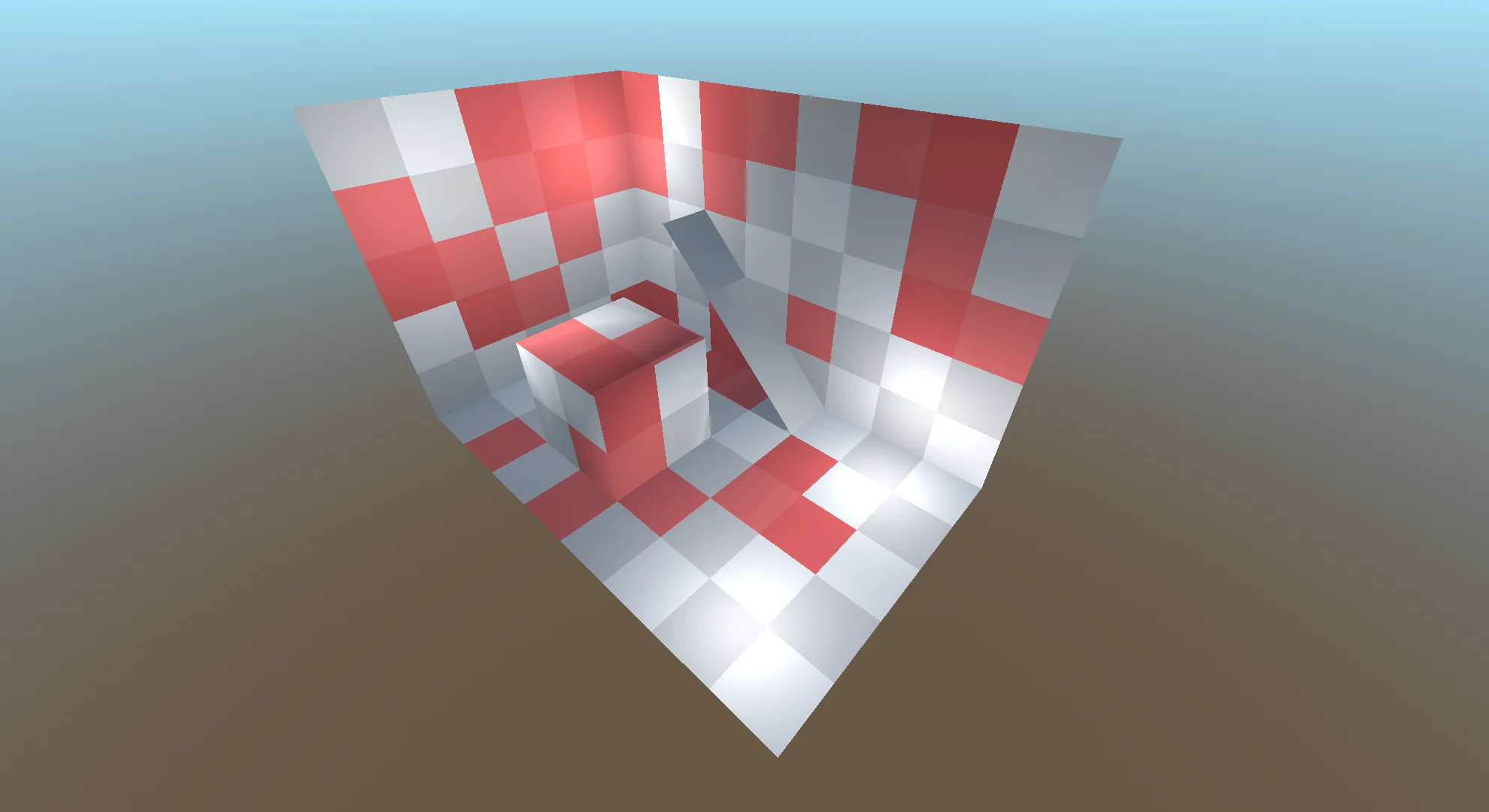

select_random_blocks

Randomly selects blocks in the scope.

First parameter is density must be between 0 and 1, and it's represents how many blocks are selected (0 is nothing selected, 1 is everything selected).

Second parameter accepts RandomNumberGenerator and is used to generate random numbers. If second parameter is null, randf() is used instead.

var rng := RandomNumberGenerator.new()
rng.seed = hash("Roommate is cool!")
ruleset.select_random_blocks(0.4, rng)

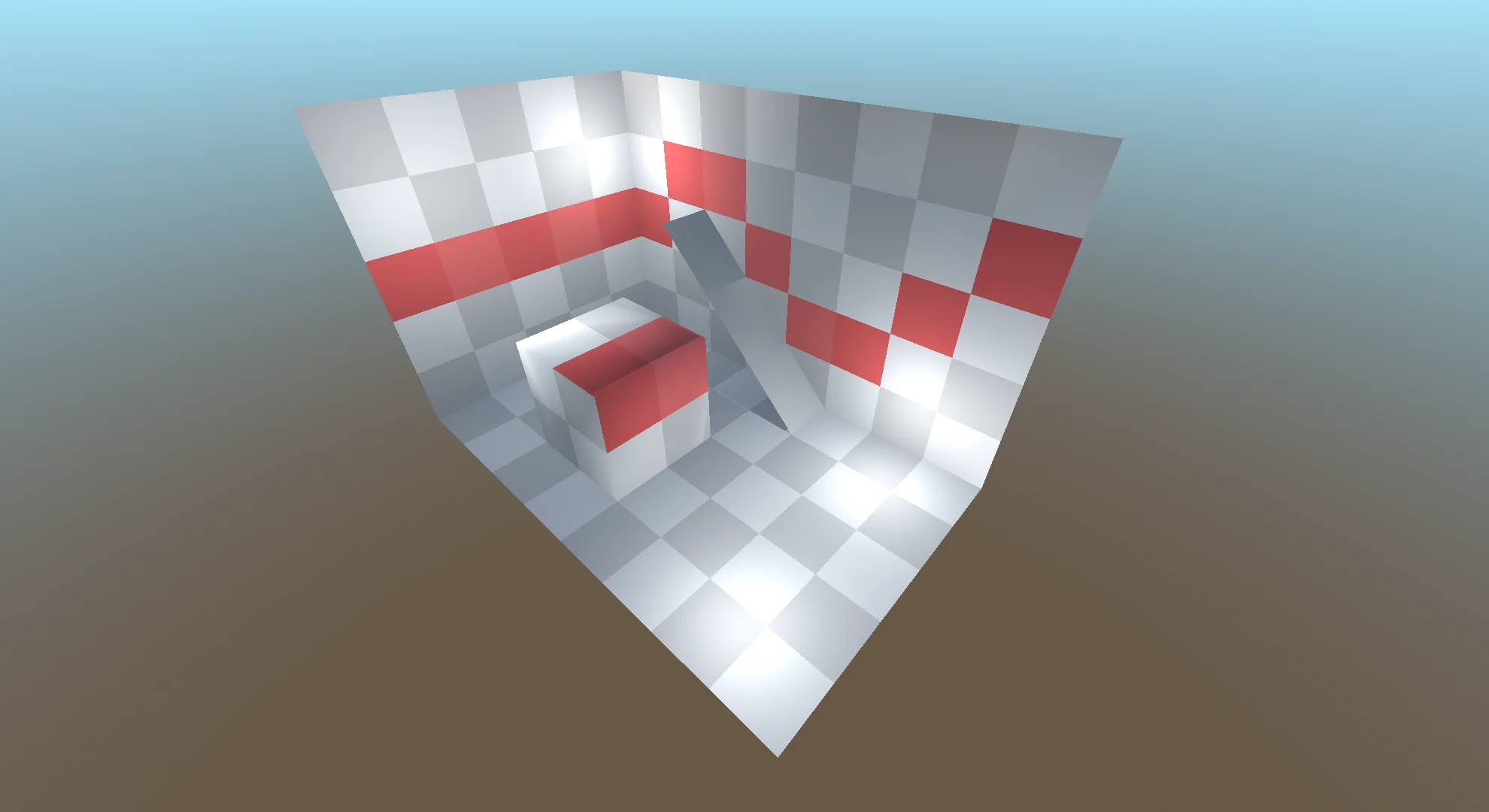

select_blocks

Use this selector if there is need for more control over block selection.

First parameter is prepare callback. It's called before block selection process. Use block_scope to calculate values. Dictionary with calculated values must be returned, which is passed to selection callback.

Second parameter is block selection callback. Calculated values can be used here via prepared_vars parameter. Return true if blocks should be selected, otherwise false.

var prepare := func (blocks_scope: Dictionary) -> Dictionary:
    var max_y: float = NAN
    var min_y: float = NAN
    for block_position in blocks_scope:
        max_y = maxf(max_y, block_position.y)
        min_y = minf(min_y, block_position.y)
    return { "sin_center": roundi((max_y - min_y) / 2 + min_y) }

var is_block_selected := func (offset_position: Vector3i, block: RoommateBlock,
        blocks_scope: Dictionary, prepared_vars: Dictionary) -> bool:
    var sin_center := prepared_vars["sin_center"] as int
    return (roundi(sin(offset_position.x)) + sin_center) == offset_position.y

ruleset.select_blocks(is_block_selected, prepare)

Blocks Selector Inclusion modes

There is also an option to change inclusion mode of each selector. Code below will be used as example on how inclusion mode affects selection.

@tool
extends RoommateStyle


func _build_rulesets() -> void:
    var ruleset := create_ruleset()
    ruleset.select_blocks_by_extreme(Vector3(0, -1, -1))
    ruleset.select_blocks_by_extreme(Vector3(0, -1, 1))
    var selector := ruleset.select_blocks_by_extreme(Vector3(1, -1, 0))
    # selector mode changing code goes here
    ruleset.select_all_parts().surfaces.color.accumulate(Color.RED, 0.8)

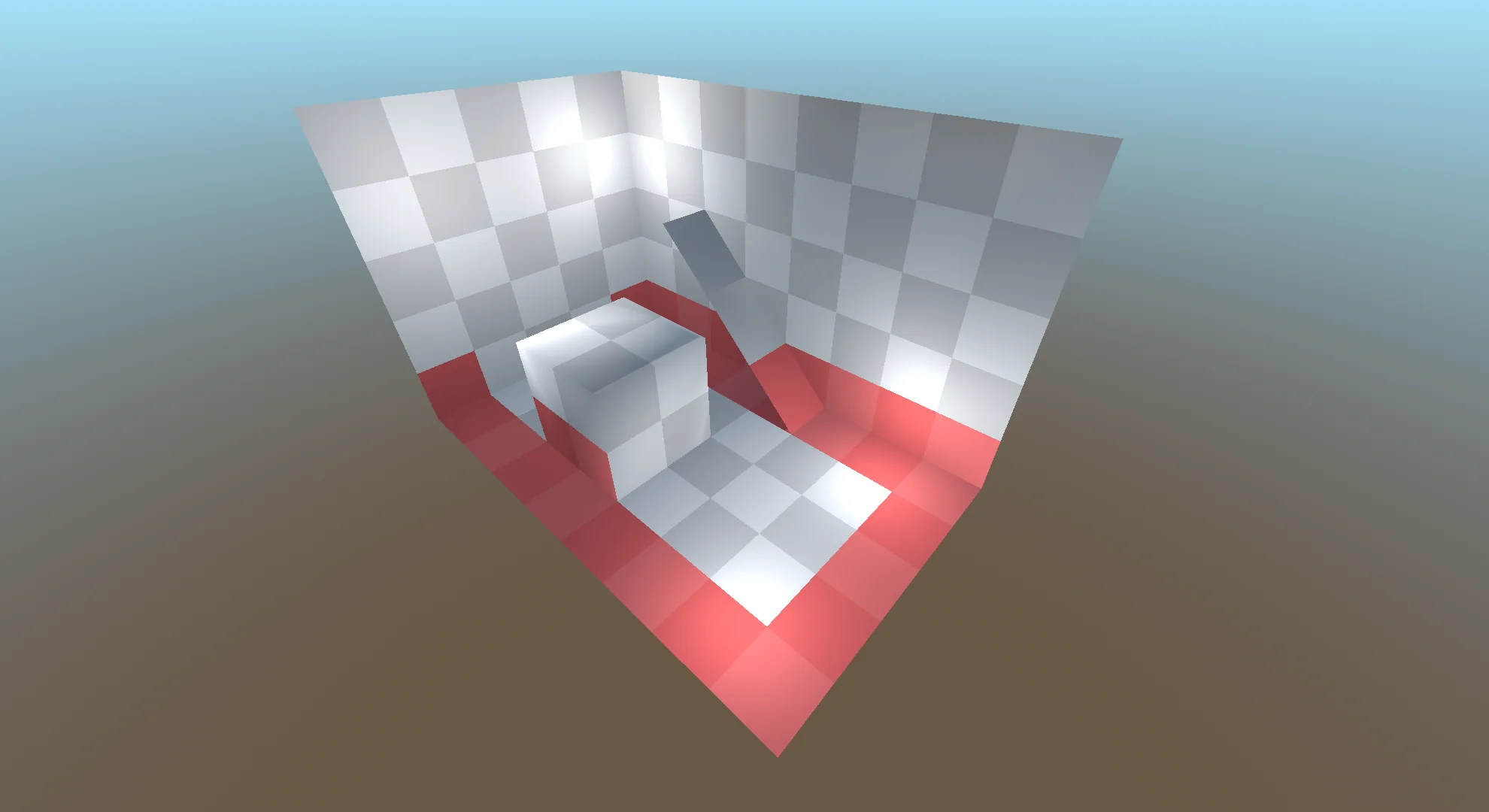

include

Selects block no matter if it's selected or not. This is default behaviour and therefore result same as above.

selector.include()

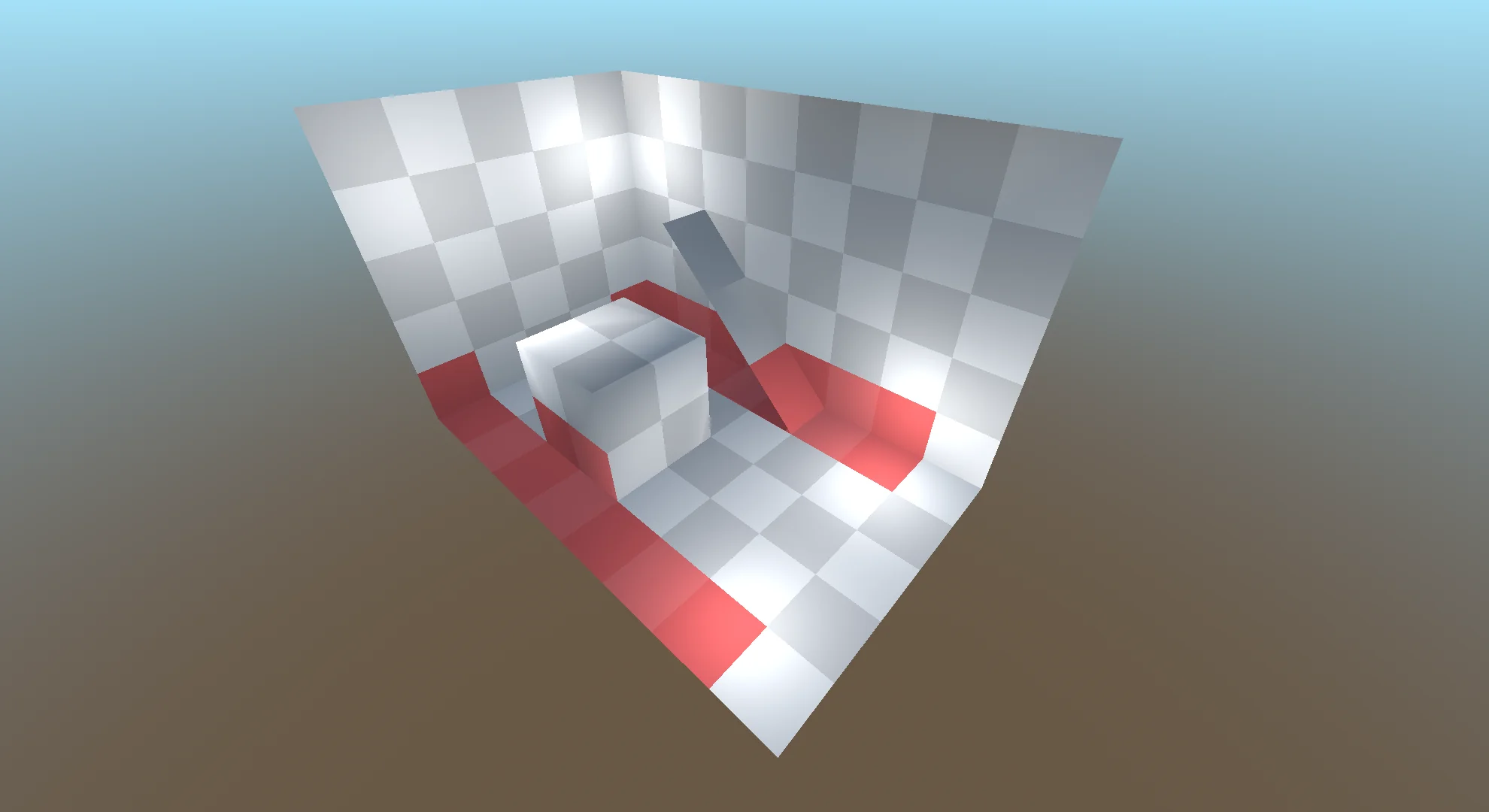

exclude

Opposite of include. It's deselecting blocks no matter if it's selected or not.

selector.exclude()

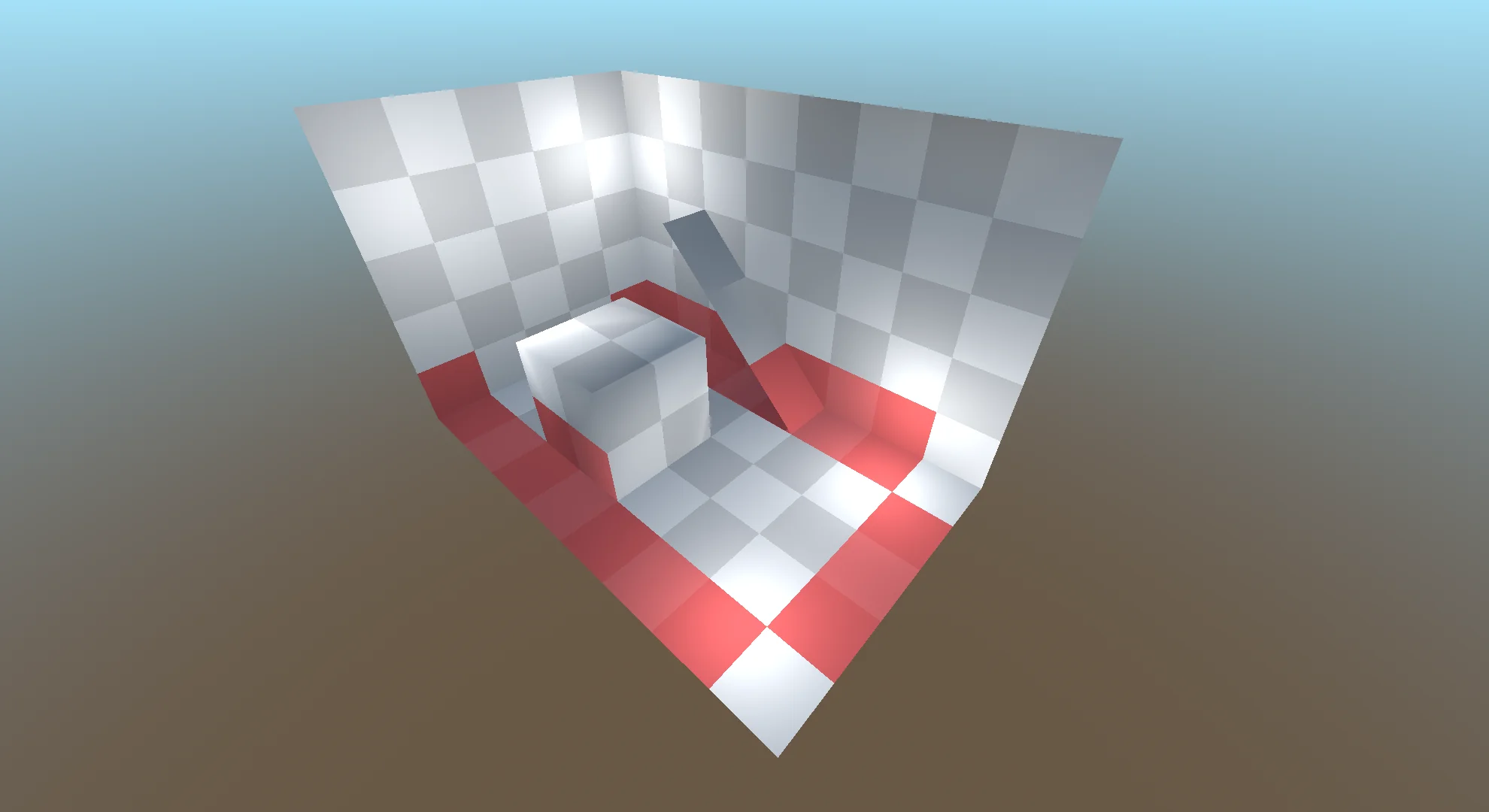

invert

Inverts selection. If block already selected, it's unselect it. If block is not selected, it's selected

selector.invert()

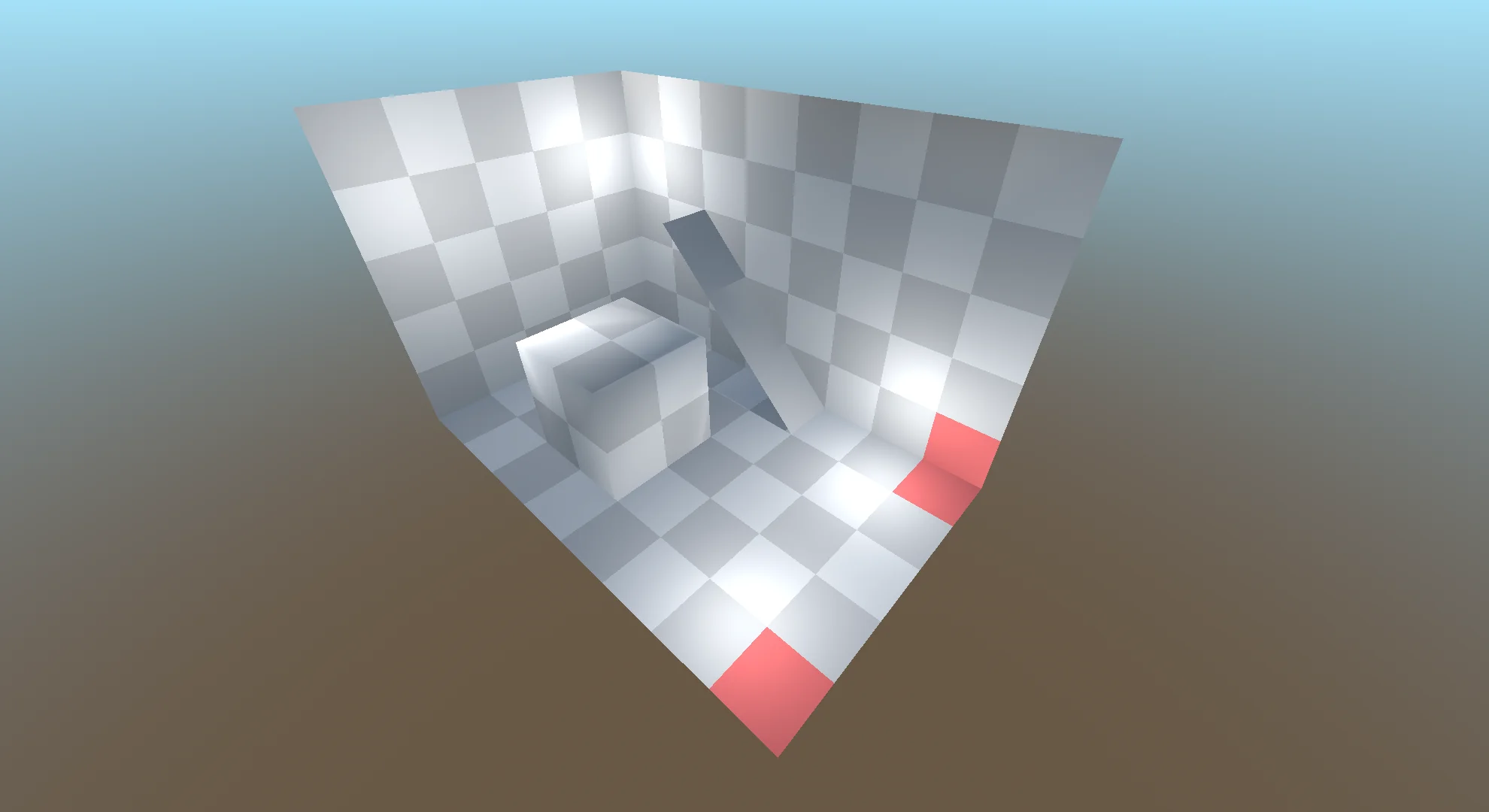

intersect

Select only blocks that already selected. Other blocks are deselected.

selector.intersect()
